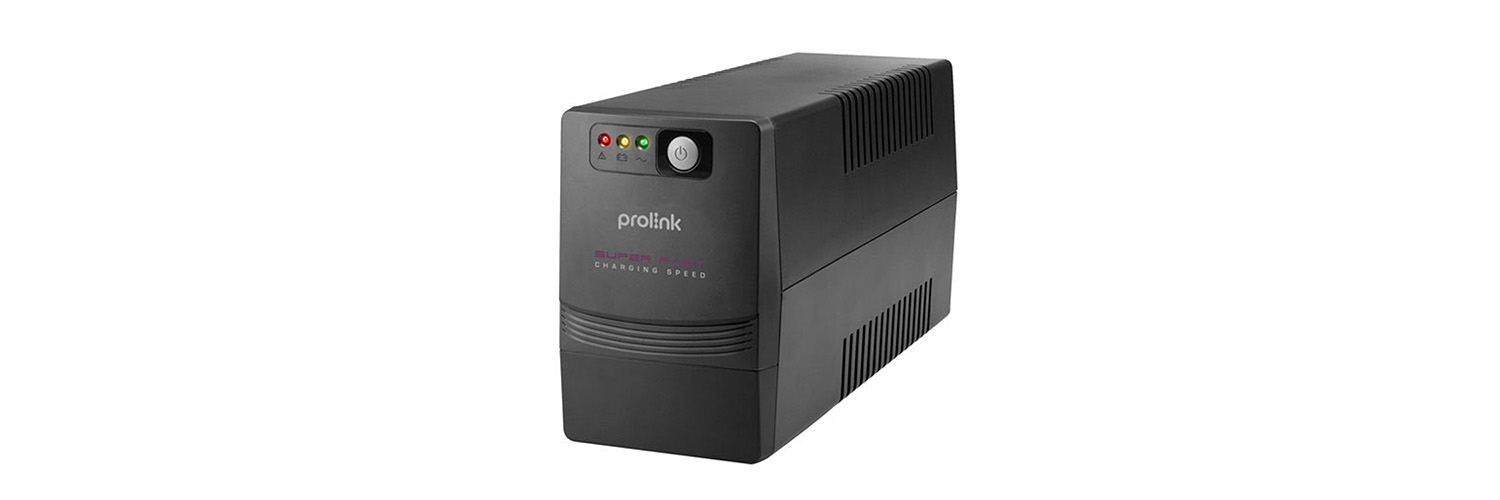

USP Prolink 1.2kva Pro1201sfc
– Boost and buck AVR for voltage stabilization
– Auto restart while AC is recovering
– Simulated sine wave
– Off-mode charging
– Cold start function
Payment Methods
රු23,000.00
රු23,000.00
රු23,500.00
රු23,700.00
රු8,203.33x 3 MonthsFull: රු24,610.00
රු23,000.00
USP Prolink 1.2kva Pro1201sfc
This cutting-edge technology is able to recharge the battery back to 90% of its capacity
within 3 hours, and is ideal for providing stable backup power to home/ small office applications.
Capacity
1200VA
Input
Voltage Range
140 – 300V ± 5%
Frequency
50Hz/60Hz (Auto-sensing)
Phase
Single + GND
Output
Voltage Range
230VAC +12% -14%
Battery Mode
230VAC +10% -10%
Frequency
50Hz ± 1% (Battery Mode)
Waveform
– Simulated Sine Wave (Battery Mode)
– Sine Wave (AC Mode)
Battery Type
12V/8.2AH – 2pcs
Backup Time
8 – 30 minutes depending on load
Recharge Time
2 – 4 hours recover to 90% capacity
Protection / Monitoring
Short Circuit Protection
Yes (Line Mode and Battery Mode)
Surge Protection
Yes
Alarm
Audible & Visual
UPS Protection
Load auto sensing and abnormal protection
Overload Protection
– Line mode : 100 – 120% 5 mins change to fault mode >120% change to fault mode shutdown immediately
– Battery mode : 100 – 110% alarm & shutdown in 10 secs >120% shutdown immediately
Intelligent Battery Management
Prevent overcharging of battery
Protect battery and prolong battery life
General
Software
Support Windows 2000/ 2003/ XP/ Vista/ 2008/ 7, Linux, Unix, and Mac
Noise Level
<40dB
Temperature
0°C – 40°C
Humidity
0 – 90%
Power Factor
Up to 0.7
Built in AVR
TRUE Full AVR (3 steps)
